GPU-Accelerated Kubernetes: Setting up NVIDIA on Minikube
If you’ve ever tried to get a GPU working inside a local Kubernetes cluster on Windows, you know the “Driver Dance” is real. 💃 But with WSL2, Docker Desktop, and a GEEKOM G1 (RTX 4060), we can finally bridge the gap between local development and production-grade AI inference.
This post covers the exact path I took to get nvidia-smi results inside a Minikube pod—saving you the headache of trial and error.
🛠️ Step 1: The Pre-Flight Checklist
Before we even touch Kubernetes, your underlying Windows and WSL2 layers must be solid. If the host can’t see the GPU, the cluster won’t stand a chance.
- NVIDIA Drivers: Ensure you have the latest Game Ready or Studio drivers (550+ series) installed on Windows.
- WSL2 Backend: In Docker Desktop Settings, ensure “Use the WSL 2 based engine” is checked.
- NVIDIA Container Toolkit: This is the most critical piece. Run these commands inside your WSL Ubuntu terminal to allow Docker to pass GPU instructions through to the hardware.
# Install the toolkit in WSL Ubuntu
curl -fsSL [https://nvidia.github.io/libnvidia-container/gpgkey](https://nvidia.github.io/libnvidia-container/gpgkey) | sudo gpg --dearmor -o /usr/share/keyrings/nvidia-container-toolkit-keyring.gpg
curl -s -L [https://nvidia.github.io/libnvidia-container/stable/deb/nvidia-container-toolkit.list](https://nvidia.github.io/libnvidia-container/stable/deb/nvidia-container-toolkit.list) | \
sed 's#deb https://#deb [signed-by=/usr/share/keyrings/nvidia-container-toolkit-keyring.gpg] https://#g' | \
sudo tee /etc/apt/sources.list.d/nvidia-container-toolkit.list
sudo apt-get update && sudo apt-get install -y nvidia-container-toolkit
sudo nvidia-ctk runtime configure --runtime=docker
sudo systemctl restart docker
ProTip: Test plain Docker GPU access first! Run docker run --rm --gpus all nvidia/cuda:12.4.0-base-ubuntu22.04 nvidia-smi. If this doesn’t show your RTX 4060, do not proceed to Minikube—reboot Windows and check your drivers.
🚀 Step 2: Launching Minikube with the “Secret Sauce”
Standard minikube start commands often fail to map the WSL libraries correctly. To make this work, we need to explicitly mount the WSL driver path into the Minikube node.
The Working Pattern:
# 1. Start fresh
minikube delete
# 2. Launch with the critical WSL mount flags
minikube start \
--driver=docker \
--container-runtime=docker \
--gpus=all \
--mount \
--mount-string="/usr/lib/wsl:/usr/lib/wsl" \
--force-systemd=true \
--extra-config=kubelet.cgroup-driver=systemd \
--cpus=6 \
--memory=16384
# 3. Enable the device plugin
minikube addons enable nvidia-device-plugin
ProTip: The --mount-string="/usr/lib/wsl:/usr/lib/wsl" flag is the “magic” that allows the inner cluster to see the NVIDIA libraries provided by WSL2.
✅ Step 3: Verification
Once the cluster is up, we need to verify that Kubernetes recognizes the GPU as an allocatable resource.
Check Node Capacity
kubectl describe node minikube | grep -A 5 [nvidia.com/gpu](https://nvidia.com/gpu)
You should see nvidia.com/gpu: 1 under both Capacity and Allocatable.
The Ultimate Test: nvidia-smi inside a Pod
Run this one-liner to spin up a temporary CUDA container and check the hardware visibility:
kubectl run gpu-test --rm -it --restart=Never \
--image=nvidia/cuda:12.4.0-base-ubuntu22.04 \
--overrides='{"spec":{"containers":[{"name":"gpu-test","resources":{"limits":{"[nvidia.com/gpu](https://nvidia.com/gpu)":"1"}}}]}}' \
-- nvidia-smi
If you see the glorious ASCII table showing your RTX 4060, you are officially ready to run local LLMs! 🎊
🛑 Troubleshooting
If your pod stays in Pending with an Insufficient gpu error:
- Check Plugin Logs:
kubectl -n kube-system logs -l name=nvidia-device-plugin-daemonset - Resource Limits: Ensure your pod YAML explicitly requests
nvidia.com/gpu: 1. Without this, K8s won’t inject the drivers into the container.
Questions?

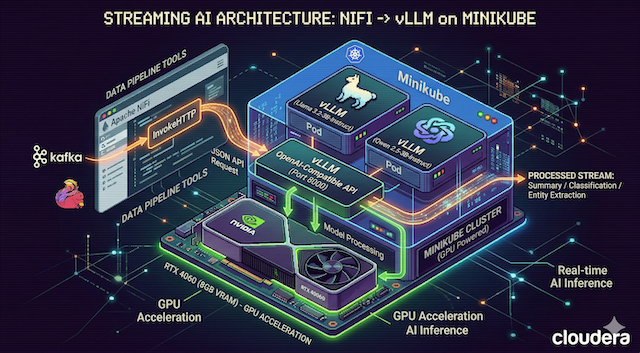

Getting GPU passthrough to work is the “final boss” of local Kubernetes setup. If you’re stuck or want to see how we use this for real-time NiFi AI pipelines, please reach out to schedule a discussion!
